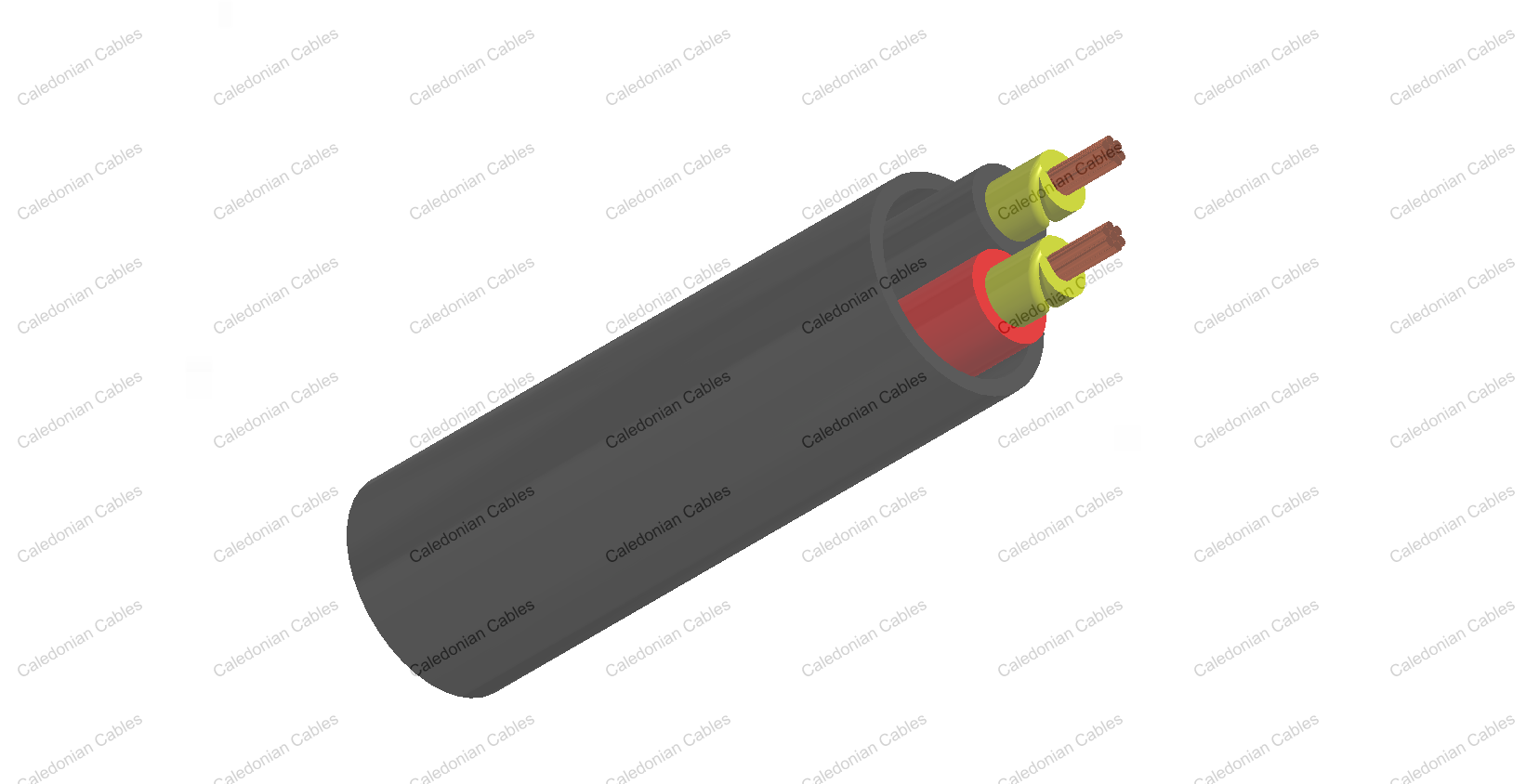

    Push Button Cable FFX200 05mRZ1-R/F 2G0.5

    APPLICATIONS

    The cables are multicore stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings.

    STANDARDS

    Basic design BS 7629-1
    Halogen Free IEC 60754-1
    No corrosive gas emission IEC 60754-2
    Minimum Smoke Emission IEC 61034-1/2
    Reduced Fire Propagation IEC 60332-3C / NF C 32070-2.2 (C1)
    Flame Retardance IEC 60332-1 / NF C 32-070-2.1 (C2)
    Fire Resistance IEC 60331 / NF C 32070-2.3(CR1)

    VOLTAGE RATING

    300/500V

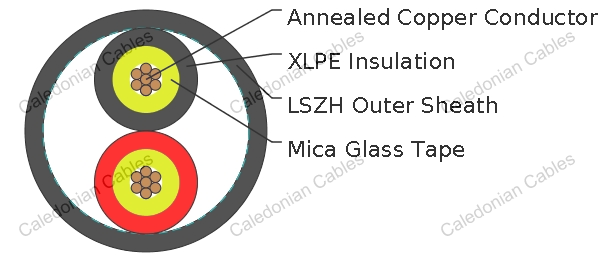

    CONSTRUCTION

    Conductor : Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 or class 5.

    Insulation : Mica glass tape covered by extruded cross-linked XLPE compound.

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.

    ELECTRICAL PROPERTIES

    Dielectric test: 2000 V r.m.s. x 5’ (core/core)
    Insulation resistance 1000 MΩ x km (at 20°C)
    Short circuit temperature 250°C

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation (fixed state) : -30°C – +90°C

    Temperature range during installation (mobile state) : -20°C – +50°C

    Minimum bending radius : 8 × Overall Diameter

    CONSTRUCTION PARAMETERS

    FFX200 05mRZ1-R 2G0.5

    FFX200 05mRZ1-F 2G0.5

    No.of core Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
      mm² No/mm mm mm mm kg/km
    2 0.5 7/0.31 0.5 0.5 6.5 45
    2 0.5 16/0.2 0.5 0.5 6.5 45
