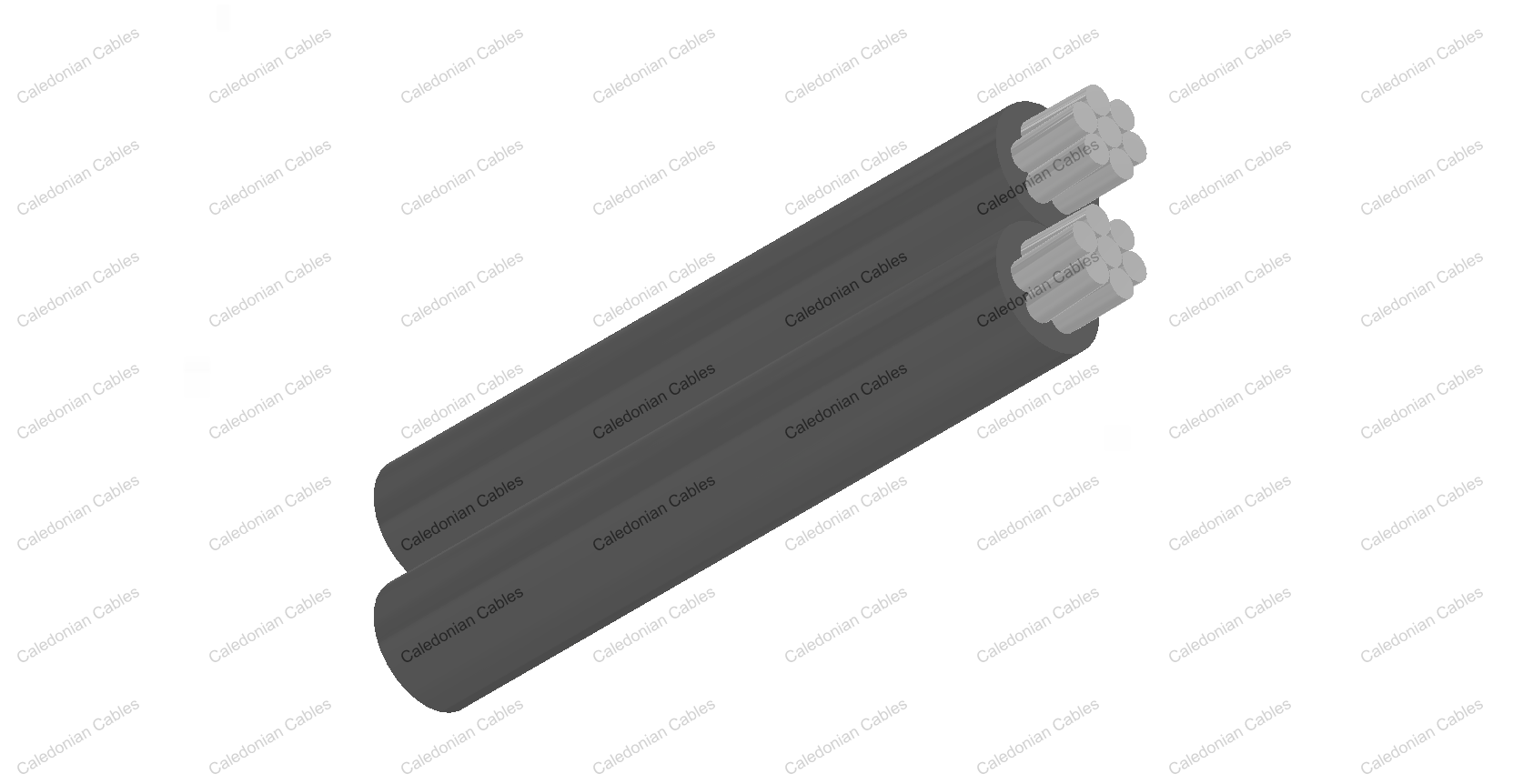

    600/1000V ABC –Aerial Bundled Cables to HD 626 S1 (AL/XLPE)

    Application

    The aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl.

    Standard

    HD 626 S1

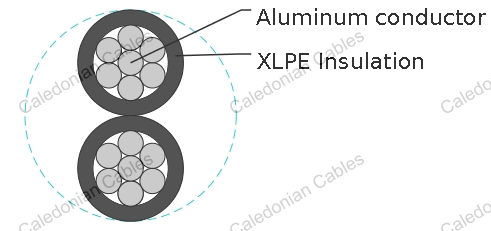

    Construction

    Conductor Aluminium conductor, round stranded compressed (RM)
    Insulation XLPE

    Technical Data

    Rated voltage kV 0.6/1
    Test voltage Veff kV/Hz 4/50
    Laying temperature °C min. -20
    Operating temperature °C -30 bis +80
    Conductor temperature °C max. +80
    Short-circuit temperature °C/s max. +130 /5
    Bending radius (min.) mm 18 × O of cable

    Dimensions

    Number of cores x nominal cross section min. breaking load of conductor strand Current rating in the air Outer diameter Total weight
    mm^2 kN A mm kg/km
    2x 16 RM 1,910 2,5 72 147
    2x 25 RM 1,200 4,0 107 208
    2x 35 RM 0,868 5,5 132 277
    2x 50 RM 0,641 8,0 165 361
    4x 16 RM 1,910 2,5 72 286
    4x 25 RM 1,200 4,0 107 430
    4x 35 RM 0,868 5,5 132 553
    4x 50 RM 0,641 8,0 165 746
    4x 70 RM 0,443 10,7 205 1009
    4x 95 RM 0,320 13,7 240 1332
    4x 120 RM 0,253 18,6 290 1632
    4x 35 + 1x 35 RM 0,868/0,868 5,5/5,5 132/132 694
    4x 50 + 1x 25 RM 0,641/1,200 8,0/4,0 165/107 814
    4x 50 + 1x 35 RM 0,641/0,868 8,5/5,5 165/132 845
    4x 70 + 1x 25 RM 0,443/1,200 10,7/4,0 205/107 1105
    4x 70 + 2x 25 RM 0,443/1,200 10,7/4,0 205/107 1217
    4x 70 + 1x 35 RM 0,443/0,868 10,7/5,5 205/132 1150
    4x 70 + 2x 35 RM 0,443/0,868 10,7/5,5 205/132 1289
    4x 95 + 1x 25 RM 0,320/1,200 13,7/4,0 240/107 1438
    4x 95 + 1x 35 RM 0,320/0,868 13,7/5,5 240/132 1467
    4x 95 + 2x 25 RM 0,320/1,200 13,7/4,0 240/107 1544

    other cross-sections on request
