 Windmill Cables
Al Conductor HEPR/PO 0.6/1kV LSOH Power Cable 90℃
Application
These cables are designed for main power lines of permanent routing in wind tower installation.
Standards
IEC 60502

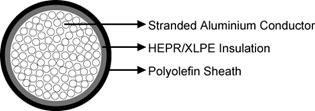

Construction
Conductor:Aluminium conductor, class 2 to IEC 60228.
Insulation: HEPR. XLPE can be offered upon request.
Inner Covering: rubber compound type GM1b.
Sheath:Compound based on polyolefin, type HXM1.
Technical Data
Rated Voltage Uo/U (Um) |
0.6/1kV |
Operating Temperatures |
-40℃~+ 90℃ |
Minimum Bending Radius |
4×OD |
Short-circuit Temperature |
250℃ |
Flame Retardant |
IEC 60332-1 |
Halogen Free |
IEC 60754 |
Gases Corrosively |
DIN EN 50267-2/ IEC 60754 |
Smoke Density |
IEC 61034 |
Oil Resistant |
Yes |
Ozone Resistant |
Yes |
UV Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
1×50 |
13.0 |
266 |
1×70 |
15.0 |
352 |
1×95 |
16.5 |
450 |
1×120 |
18.0 |
556 |
1×150 |
20.0 |
686 |
1×185 |
22.5 |
842 |
1×240 |
26.0 |
1076 |
1×300 |
29.0 |
1299 |
1×400 |
32.5 |
1680 |
3×150 |
44.0 |
2756 |
4×150 |
49.0 |
3367 |
|
