Type W Two-Conductor Flat Portable Power Cable 2kV
Applications
These flat parallel cables are designed for use on DCmining equipment, such as D.C. shuttle cars, drills, cutting and loading machines.
Standards
- ICEA S-75-381/NEMA WC 58
- ASTM B 172
- ASTM B 33
- CAN/CSA C22.2 No. 96

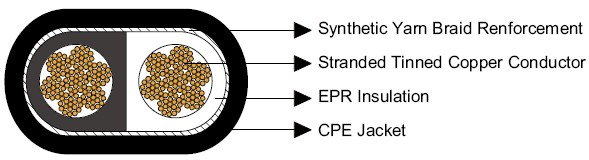

Construction
- Conductors: Stranded annealed tinned copper conductor.
- Insulation:EPR.
- Reinforcement: Synthetic yarn.
- Jacket:Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon request.
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
- Minimum Bending Radius: 6×OD
- Maximum Operating Temperature: +90℃
Dimensions and Weight:
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Overall Diameter
Height×Width |
Nominal Weight |
Ampacity |
No. of cores×AWG/kcmil |
|
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
2×8 |
133 |
0.06 |
1.5 |
0.51×0.84 |
13.0×21.3 |
340 |
506 |
72 |
2×6 |
133 |
0.06 |
1.5 |
0.56×0.93 |
14.2×23.6 |
440 |
655 |
95 |
2×4 |
259 |
0.06 |
1.5 |
0.61×1.05 |
15.5×26.7 |
550 |
818 |
127 |
2×3 |
259 |
0.06 |
1.5 |
0.68×1.14 |
17.3×29.0 |
675 |
1005 |
145 |
2×2 |
259 |
0.06 |
1.5 |
0.73×1.24 |
18.5×31.5 |
810 |
1205 |
167 |
2×1 |
259 |
0.08 |
2.0 |
0.81×1.40 |
20.6×35.6 |
1020 |
1520 |
191 |
2×1/0 |
259 |
0.08 |
2.0 |
0.93×1.51 |
23.6×38.2 |
1265 |
1880 |
217 |
2×2/0 |
329 |
0.08 |
2.0 |
0.99×1.63 |
25.1×41.4 |
1515 |
2255 |
250 |
2×3/0 |
413 |
0.08 |
2.0 |
1.03×1.77 |
26.2×45.0 |
1810 |
2694 |
286 |
2×4/0 |
532 |
0.08 |
2.0 |
1.10×1.89 |
27.9×48.0 |
2175 |
3237 |
328 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381. |
