Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Sheath, 8kV
Applications

These cables are designed for connections between units of mine distribution systems, suitable forinstalled in duct, conduit or open air and for direct burial in wet and dry locations.

Standards

  • ICEA S-75-381/NEMA WC 58
  • ASTM B-8
  • CAN/CSA-C22.2 No.96

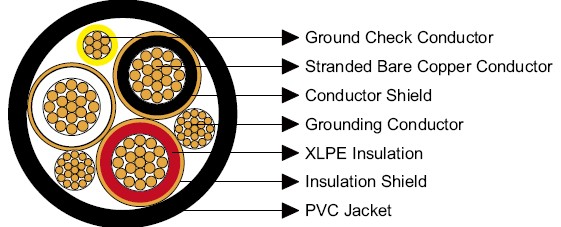

Construction

  • Conductors: Stranded annealed bare copper conductor.
  • Conductor Shield:Semi-conducting layer.
  • Insulation:XLPE.
  • Insulation Shield:Semi-conducting layer + copper tape.
  • Ground Check Conductor:Copper conductor with a yellow polypropylene insulation.
  • Grounding Conductor:Tinned copper conductor.
  • Sheath: PVC, black. Other sheath materials can be offered upon request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

  • Minimum Bending Radius: 12×OD
  • Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction

No. of Strands

Grounding Conductor Size

Ground Check Conductor Size

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Nominal Weight

Ampacity

No. of cores×AWG/kcmil

-

AWG/kcmil

AWG/kcmil

inch

mm

inch

mm

inch

mm

lbs/kft

kg/km

A

3×4

7

8

8

0.115

2.9

0.11

2.8

1.52

38.6

1366

2032

122

3×2

7

6

8

0.115

2.9

0.11

2.8

1.58

40.1

1727

2569

159

3×1

19

5

8

0.115

2.9

0.11

2.8

1.66

42.2

2174

3234

184

3×1/0

19

4

8

0.115

2.9

0.11

2.8

1.74

44.2

2656

3952

211

3×2/0

19

3

8

0.115

2.9

0.14

3.6

1.90

48.3

2895

4307

243

3×3/0

19

2

8

0.115

2.9

0.14

3.6

2.00

50.8

3320

4950

279

3×4/0

19

1

8

0.115

2.9

0.14

3.6

2.12

53.8

3983

5926

321

3×250

37

1/0

8

0.115

2.9

0.14

3.6

2.22

56.4

4484

6671

355

3×350

37

2/0

8

0.115

2.9

0.14

3.6

2.43

61.7

5827

8669

435

3×500

37

4/0

8

0.115

2.9

0.14

3.6

2.70

68.6

7893

11743

536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
