 Mining Cable
Type 1 1.1/1.1KV Individually Screened
Applications
These individuallycopper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

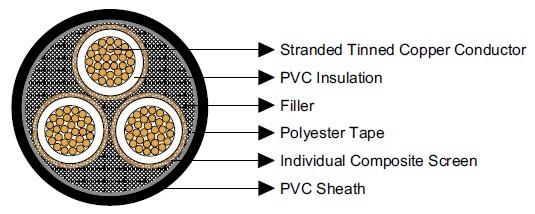

Construction
Conductors: Stranded copper conductor.
Insulation: PVC.
Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Binding: Polyester tape.
Sheath: PVC sheath.
Dimensions and Weight
Number of Cores |
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core screen |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
Strand Size |
Area
of Screen |
|
mm² |
No/mm |
mm |
mm |
mm² |
mm |
mm |
kg/100m |
Type 1 - Individually Screened |
3 |
1.5 |
30/0.25 |
0.8 |
0.20 |
3.5 |
0.8 |
10.1 |
16 |
4 |
1.5 |
30/0.25 |
0.8 |
0.20 |
4.6 |
0.8 |
11.1 |
21 |
3 |
10 |
77/0.40 |
1.0 |
0.20 |
6.8 |
1.0 |
18.6 |
59 |
4 |
10 |
77/0.40 |
1.0 |
0.20 |
9.0 |
1.0 |
20.5 |
75 |
3 |
16 |
126/0.40 |
1.0 |
0.20 |
7.9 |
1.3 |
21.6 |
84 |
4 |
16 |
126/0.40 |
1.0 |
0.20 |
10.6 |
1.3 |
23.7 |
110 |
|
