XZ1

APPLICATIONS:

XZ1 cables with zero halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

STANDARD:

IEC 60502-1

CONSTRUCTION:

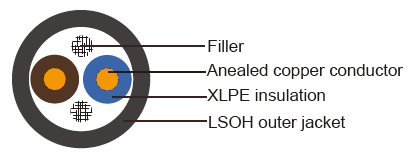

XZ1

Conductor: Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code : HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black LSOH outer jacket

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x O
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Halogen free: IEC 60754-1, EN 50267-2-1
No corrosive gases: IEC 60754-2, EN 50267-2-2
No toxic gases: NES 02-713, NF X 70-100 Low smoke density: IEC 61034, EN 50268-2
Flame retardant: IEC 60332-1, EN 50265-2-1
Non-flame propagating IEC 60332-3, EN 502
Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.) Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.)
mm^2 mm Kg/Km mm^2 mm Kg/Km
1 x 10 85 135 4 x 6 140 355
1 x 16 95 195 4 x 10 165 550
1 x 25 110 295 3 x 16 + 1 x 10 185 745
1 x 35 120 385 3 x 25 + 1 x 16 220 1140
1 x 50 135 510 3 x 35 + 1 x 16 240 1330
1 x 70 155 715 3 x 50 + 1 x 25 265 1795
1 x 95 175 970 3 x 70 + 1 x 35 310 2535
1 x 120 195 1215 3 x 95 + 1 x 50 350 3460
1 x 150 210 1480 3 x 120 + 1 x 70 385 4385
1 x 185 235 1840 3 x 150 + 1 x 70 425 5295
1 x 240 265 2375 3 x 185 + 1 x 95 450 6735
1 x 300 285 2980 3 x 240 + 1 x 120 525 8550
2 x 1,5 95 110 5 x 1,5 115 175
2 x 2,5 100 135 5 x 2,5 125 230
2 x 4 110 180 5 x 4 135 320
2 x 6 120 235 5 x 6 150 435
2 x 10 145 350 5 x 10 180 670
2 x 16 165 500 3 x 16 + 2G10 200 865
3 x 1,5 100 125 3 x 25 + 2G16 235 1315
3 x 2,5 105 160 3 x 35 + 2G16 260 1680
3 x 4 115 220 3 x 50 + 2G25 295 2250
3 x 6 125 290 3 x 70 + 2G35 340 3160
3 x 10 150 440 3 x 95 + 2G50 405 4485
3 x 16 175 635 3 x 120 + 2G70 465 5875
4 x 1,5 105 145 3 x 150 + 2G70 495 6835
4 x 2,5 115 195 3 x 185 + 2G95 510 7900
4 x 4 125 265 3 x 240 + 2G120 625 11115
