H1VV-R

APPLICATIONS:

H1VV-R cables are used for electricity supply in low voltage installation system,H1VV-R cables are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

STANDARD:

IEC 60502-1

CONSTRUCTION:

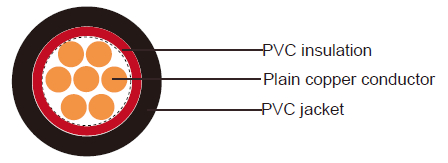

H1VV-R

Conductor: Stranded copper conductor, class 2 to IEC 60228
Insulation: PVC insulation
Colour Code :HD 308 S2
Over Sheath: Flexible black PVC outer jacket

PHYSICAL PROPERTIES:

Flexing bending radius: 15 x O Static bending radius: 12 x O
Flexing temperature: -5o C to +50o C
Fixed installation temperature: - 40o C to +70o C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 4000 volts
Flame retardant: IEC 60332-1, EN 50265-2-1
Insulation resistance: >100 MO x km

PARAMETERS:

Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.) Nominal Cross Section Overall Diameter (Approx.) Cable Weight (Approx.)
mm^2 mm Kg/Km mm^2 mm Kg/Km
1x4 7.5 95 3x4 15.5 380
1x6 8 120 3x6 17 470
1x10 9 165 3x10 18.5 630
1x16 10 230 3x16 21 880
1x25 12 340 3x25 24.5 1280
1x35 13 450 3x35 27 1660
1x50 14.5 570 3x50 30 2110
1x70 16 800 3x70 35 2980
1x95 18.5 1070 3x95 40 3930
1x120 20 1300 3x120 43 4780
1x150 22 1600 3x150 48 5880
1x185 24 1980 3x185 52 7230
1x240 27 2560 3x240 59 9390
1x300 30 3180 3x300 65 11620
1x400 33 4060 3x400 72 14730
1x500 37 5140 4x4 16.5 450
1x630 42 6600 4x6 18 560
2x4 15 330 4x10 20 770
2x6 16 400 4x16 23 1080
2x10 17.5 525 4x25 26.5 1580
2x16 20 720 4x35 29.5 2070
2x25 23.5 1030 4x50 34 2680
2x35 25.5 1320 4x70 38 3760
2x50 28.5 1670 4x95 44 4960
2x70 32 2290 4x120 48 6110
2x95 37 3060 4x150 53 7450
2x120 40 3700 4x185 58 9220
2x150 44 4500 4x240 65 11900
2x185 48 5570 4x300 72 14730
2x240 55 7180 4x400 81 18830
