Automotive Cable

Germany Standard

Single-core cable


Application and Description

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

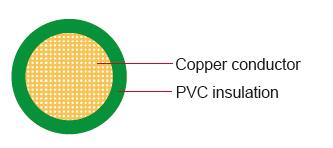

Cu-ETP1 bare according to DIN EN 13602


PVC insulation(cold resistant)


ISO 6722 Class B

Special properties:

Cold bending test according to ISO 6722 at –50 °C.

Short-term and long-term ageing according to ISO 6722, Class B.

Technical Parameters:

Operating temperature: –50°C to +105°C

Conductor Construction



Nominal cross- section No. and Dia. of Wires Diameter
of Conductor max.
Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.50 16 /0.21 1.0 37.7 0.22 1.4 1.6 7
1x1.00 32/0.21 1.4 18.5 0.30 2.3 2.1 12
1x1.50 30/0.26 1.7 12.7 0.24 2.2 2.4 17
1x2.50 50/0.26 2.1 7.6 0.70 3.5 3.7 33

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
