Applications
These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolasting transformers, and between the isolating transformers.
Standards
ENV 50213

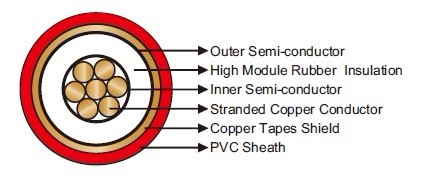

Construction
Conductor: Compact stranded bare copper
conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: High module rubber compound, G7 type.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Bare copper tapes.
Sheath: PVC.
Technical Data
| Rated Voltage Uo/U (Um) | 3.6/6kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | 0℃~+90℃ |
| Minimum Bending Radius | 15×OD |
| Flame Retardant | Yes |
Dimensions and Weight
| Construction | Nominal Insulation Thickness |
Minimum Shield Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | mm | kg/km |
| 1×10 | 2.3 | 0.075 | 1.4 | 14.0 | 305 |
