These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
ENV 50213
IEC 50602-2
VDE 0271

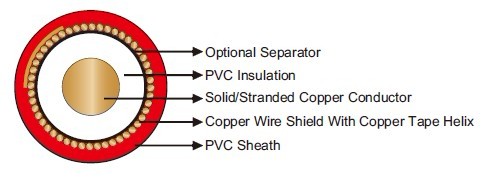

Conductor : Solid or stranded bare copper conductor.
Insulation : PVC.
Optional Separator : Separator tape.
Shield : Concentric layer of bare copper wires, counter helix of a copper tape.
Sheath : PVC.
| Rated Voltage Uo/U (Um) | 1/2kV, 1.5/3kV, 2.5/5kV, 3/6kV, 5/10kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | 15×OD |
| Flame Retardant | Yes |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
1/2kV
| Construction | Nominal Insulation Thickness |
Nominal Shield Cross Section |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 1.5 | 2.5 | 1.4 | 10.0 | 170 |
1.5/3kV
| Construction | Nominal Insulation Thickness |
Nominal Screen Cross Section |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 2.8 | 2.5 | 1.4 | 12.5 | 240 |
2.5/5kV
| Construction | Nominal Insulation Thickness |
Nominal Shield Cross Section |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 3.0 | 4 | 1.4 | 13.0 | 250 |
3/6kV
| Construction | Nominal Insulation Thickness |
Nominal Shield Cross Section |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 3.0 | 4 | 1.4 | 13.0 | 250 |
| 1×16 | 3.0 | 6 | 1.4 | 15.0 | 465 |
5/10kV
| Construction | Nominal Insulation Thickness |
Nominal Screen Cross Section |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 3.8 | 6 | 1.4 | 16.5 | 360 |
| 1×10 | 3.8 | 6 | 1.4 | 17.0 | 390 |
