 FAA L-824 Type C 600V
Applications
These cables are designed for use in airport lighting and control circuits, suitable for installation in
ducts, conduit and direct burial.
Standards
FAA L-824 Type C
ICEA S-95-658/NEWA WC71

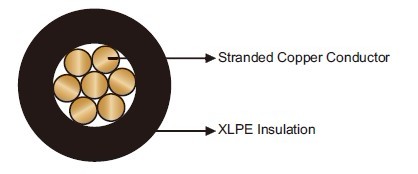

Construction
Conductor: Stranded bare copper to ASTM B.
Insulation: XLPE.
Sheath (for multiconductor cables only): PVC
Technical Data
Rated Voltage Uo/U (Um) |
600V |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
5×OD |
Dimensions and Weight
Construction |
No. of
Strand |
Nominal Insulation
Thickness |
Nominal Sheath
Thickness |
Nominal Overall
Diameter |
Nominal Weight |
No.× AWG |
- |
mm |
mm |
mm |
inches |
mm |
inches |
kg/km |
lbs/kft |
1×12 |
7 |
mm |
inches |
- |
- |
4.62 |
0.182 |
46 |
30 |
1×10 |
7 |
1.14 |
0.045 |
- |
- |
5.21 |
0.205 |
61 |
43 |
1×8 |
7 |
1.14 |
0.045 |
- |
- |
6.76 |
0.266 |
101 |
69 |
1×6 |
7 |
1.52 |
0.06 |
- |
- |
7.72 |
0.304 |
152 |
102 |
1×4 |
7 |
1.52 |
0.06 |
- |
- |
8.94 |
0.352 |
231 |
158 |
2×12 |
7 |
0.76 |
0.03 |
1.14 |
0.045 |
10.41 |
0.41 |
146 |
98 |
2×10 |
7 |
0.76 |
0.03 |
1.14 |
0.045 |
11.56 |
0.455 |
199 |
134 |
2×8 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
15.37 |
0.605 |
323 |
217 |
2×6 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
17.40 |
0.685 |
446 |
300 |
2×4 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
19.81 |
0.780 |
632 |
425 |
3×12 |
7 |
0.76 |
0.03 |
1.14 |
0.045 |
11.05 |
0.435 |
187 |
126 |
3×10 |
7 |
0.76 |
0.03 |
1.14 |
0.045 |
12.19 |
0.480 |
259 |
174 |
3×8 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
16.38 |
0.645 |
437 |
294 |
3×6 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
18.42 |
0.725 |
610 |
410 |
3×4 |
7 |
1.14 |
0.045 |
2.03 |
0.08 |
21.97 |
0.865 |
908 |
610 |
4×12 |
7 |
0.76 |
0.03 |
1.14 |
0.045 |
12.07 |
0.475 |
222 |
149 |
4×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
14.22 |
0.560 |
350 |
235 |
4×8 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
17.91 |
0.705 |
548 |
368 |
4×6 |
7 |
1.14 |
0.045 |
1.52 |
0.06 |
20.19 |
0.795 |
772 |
519 |
4×4 |
7 |
1.14 |
0.045 |
2.03 |
0.08 |
24.13 |
0.950 |
1165 |
783 |
5×12 |
7 |
0.76 |
0.03 |
1.14 |
0.045 |
13.08 |
0.515 |
292 |
196 |
5×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
15.49 |
0.610 |
405 |
272 |
6×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
15.24 |
0.600 |
357 |
240 |
6×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
16.89 |
0.665 |
495 |
333 |
7×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
15.24 |
0.600 |
379 |
255 |
7×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
16.89 |
0.665 |
534 |
359 |
8×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
16.38 |
0.645 |
430 |
289 |
8×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
18.29 |
0.720 |
604 |
406 |
9×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
17.65 |
0.695 |
479 |
322 |
9×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
19.69 |
0.775 |
707 |
475 |
10×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
18.42 |
0.725 |
539 |
362 |
10×10 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
20.57 |
0.810 |
762 |
512 |
11×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
18.92 |
0.745 |
594 |
399 |
11×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
22.10 |
0.870 |
878 |
590 |
12×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
19.43 |
0.765 |
631 |
424 |
12×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
22.61 |
0.890 |
933 |
627 |
13×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
20.07 |
0.790 |
662 |
445 |
13×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
23.50 |
0.925 |
985 |
662 |
14×12 |
7 |
0.76 |
0.03 |
1.52 |
0.06 |
20.83 |
0.820 |
708 |
476 |
14×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
24.26 |
0.955 |
1053 |
708 |
15×12 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
22.35 |
0.880 |
793 |
533 |
15×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
24.89 |
0.980 |
1119 |
752 |
16×12 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
22.99 |
0.905 |
839 |
564 |
16×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
25.65 |
1.010 |
1186 |
797 |
17×12 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
23.62 |
0.930 |
902 |
606 |
17×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
26.29 |
1.035 |
1275 |
857 |
18×12 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
24.26 |
0.955 |
946 |
636 |
18×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
26.92 |
1.060 |
1342 |
902 |
19×12 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
24.26 |
0.955 |
970 |
652 |
19×10 |
7 |
0.76 |
0.03 |
2.03 |
0.08 |
26.92 |
1.060 |
1381 |
928 |
|
