 FAA L-824 Type C Sheathed 5kV
Applications
These cables are used for interconnecting the transformers and the current regulator of airfield
lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational
aids, and obstruction lighting, can be installed in conduit and direct burial.
Standards
FAA L-824 Type C
ICEA S-96-659/NEWA WC71

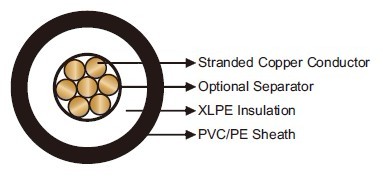

Construction
Conductor: Stranded bare copper to ASTM B3 and ASTM B8.
Optional Separator: Optional separator or conductor shield be applied.
Insulation: XLPE.
Sheath: PE/PVC.
Technical Data
Rated Voltage Uo/U (Um) |
5kV |
Maximum Conductor Temperature |
90℃ |
Short Circuit Temperature |
250℃ |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
static: 10×OD; dynamic: 20×OD |
| Impacted Resistant |
Yes |
Weather Resistant |
Yes |
Dimensions and Weight
Construction |
No. of
Strand |
Nominal Insulation
Thickness |
Nominal Insulation
Thickness |
Nominal Overall
Diameter |
Nominal Weight |
No.× AWG |
- |
mm |
inches |
mm |
inches |
mm |
inches |
kg/km |
lbs/kft |
| 1×6mm² |
7 |
2.3 |
0.09 |
0.8 |
0.03 |
9.9 |
0.39 |
180 |
121 |
1×8 |
7 |
2.3 |
0.09 |
0.76 |
0.03 |
10.1 |
0.396 |
95 |
64 |
1×6 |
7 |
2.3 |
0.09 |
0.76 |
0.03 |
11.0 |
0.433 |
127 |
85 |
1×4 |
7 |
2.3 |
0.09 |
1.14 |
0.045 |
13.0 |
0.509 |
164 |
110 |
|
