 400Hz Airport Cables Single Core With Control Wires
Applications
These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and
radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

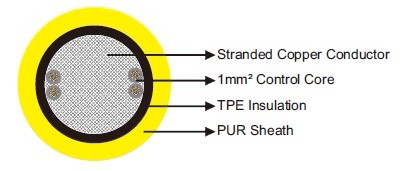

Construction
Conductor: Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation: TPE. XLEPR/PUR can be offered upon request.
Control Core: 1mm² stranded copper conductor with TPE insulation. XLPE/Polyolefin can be
offered upon request
Sheath: PUR.
Technical Data
Rated Voltage Uo/U (Um) |
600/1000V |
Operating Temperatures |
-40℃~+90℃ |
Minimum Bending Radius |
static: 6×OD; dynamic: 7×OD |
Halogen Free |
Yes |
No Corrosive & Toxic Gases |
Yes |
Flame Retardant |
Yes |
Abrasion Resistant |
Yes |
UV Resistant |
Yes |
Oil Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
kg/km |
1×35+4×1 |
14.0 |
490 |
1×50+4×1 |
17.0 |
600 |
1×70+4×1 |
18.7 |
800 |
1×120+4×1 |
25.0 |
1400 |
|
