400Hz Airport Cables 7-core With Double Sheath & Control Wires

400Hz Airport Cables 7-core With Double Sheath & Control Wires

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

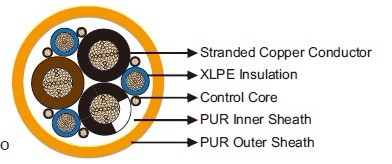

Construction

Conductor : Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.

Insulation : XLPE.

Control Core : 1mm² stranded copper conductor with PVC insulation.

Inner Sheath : PUR.

Outer Sheath : PUR.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -55℃~+80℃
Minimum Bending Radius static: 4×OD; dynamic: 6×OD
Flame Retardant Yes
Abrasion Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Diameter of 50mm² Core Nominal Diameter of 16mm² Core Nominal Diameter of Control Core Nominal Diameter Under Outer Sheath Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm mm mm mm kg/km
3×50+3×16+6×1 12.2 7.2 2.5 30.4 34.0 2200
