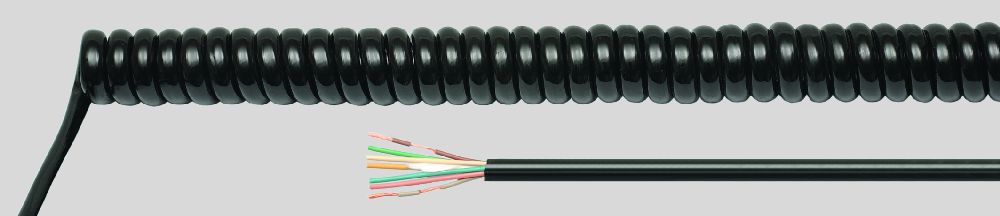

Neoprene Spiral Cables

Application:Building and Chemical Industries ,Transport and Production lines

Temperature range:-25°C to +60°C

Test voltage:H05RN-F 2000 V ,H07RN-F 2500 V

Expansion ratio 1:3.5:straight ends 500/500

Nominal voltage:H05RN-F 300/500 V (up to 1 mm²) ,H07RN-F 450/750 V (from 1.5 mm²)

Cable Construction:Plain copper conductor and fine wire stranded to DIN VDE 0295 cl. 5 ,Rubber conductor

insulation ,Conductor identification to DIN VDE 0293 ,Conductors stranded in layers ,Polychloropren outer jacket

Description & No. Conductors x cross-sec. mm²
Spiral Length unexpanded (mm)
Cable Ø (mm)
Spiral Outer Ø (mm)
Cop. weight
kg/km
 Neoprene Spiral Cable 2 x 0.75 500 7.0
24.0
 78.0
 Neoprene Spiral Cable 2 x 0.75 1000 7.0 24.0 139.0
 Neoprene Spiral Cable 2 x 0.75 1500 7.0 24.0 201.0
 Neoprene Spiral Cable 2 x 0.75 2000 7.0 24.0 263.0
 Neoprene Spiral Cable 2 x 0.75 2500 7.0 24.0 324.0
 Neoprene Spiral Cable 3 x 0.75 500 7.4 25.0 113.5
 Neoprene Spiral Cable 3 x 0.75 1000 7.4 25.0 204.0
 Neoprene Spiral Cable 3 x 0.75 1500 7.4 25.0 293.5
 Neoprene Spiral Cable 3 x 0.75 2000 7.4 25.0 382.5
 Neoprene Spiral Cable 3 x 0.75 2500 7.4 25.0 473.0
 Neoprene Spiral Cable 2 x 1.0 500 8.4 27.0 96.0
 Neoprene Spiral Cable 2 x 1.0 1000 8.4 27.0 171.0
 Neoprene Spiral Cable 2 x 1.0 1500 8.4 27.0 246.0
 Neoprene Spiral Cable 2 x 1.0 2000 8.4 27.0 320.5
 Neoprene Spiral Cable 2 x 1.0 2500 8.4 27.0 395.5
 Neoprene Spiral Cable 3 x 1.0 500 9.1 29.0 138.5
 Neoprene Spiral Cable 3 x 1.0 1000 9.1 29.0 244.0
 Neoprene Spiral Cable 3 x 1.0 1500 9.1 29.0 350.5
 Neoprene Spiral Cable 3 x 1.0 2000 9.1 29.0 456.5
 Neoprene Spiral Cable 3 x 1.0 2500 9.1 29.0 562.5
 Neoprene Spiral Cable 2 x 1.5 500 9.4 31.0 148.5
 Neoprene Spiral Cable 2 x 1.5 1000 9.4 31.0 267.0
 Neoprene Spiral Cable 2 x 1.5 1500 9.4 31.0 383.5
 Neoprene Spiral Cable 2 x 1.5 2000 9.4 31.0 499.5
 Neoprene Spiral Cable 2 x 1.5 2500 9.4 31.0 618.0
 Neoprene Spiral Cable 3 x 1.5 500 10.1 33.0 217.0
 Neoprene Spiral Cable 3 x 1.5 1000 10.1 33.0 386.5
 Neoprene Spiral Cable 3 x 1.5 1500 10.1 33.0 555.5
 Neoprene Spiral Cable 3 x 1.5 2000 10.1 33.0 724.5
 Neoprene Spiral Cable 3 x 1.5 2500 10.1 33.0 893.5
 Neoprene Spiral Cable 2 x 2.5 500 11.6 38.0 242.5
 Neoprene Spiral Cable 2 x 2.5 1000 11.6 38.0 436.0
 Neoprene Spiral Cable 2 x 2.5 1500 11.6 38.0 625.5
 Neoprene Spiral Cable 2 x 2.5 2000 11.6 38.0 815.0
 Neoprene Spiral Cable 2 x 2.5 2500 11.6 38.0 1008.0
 Neoprene Spiral Cable 3 x 2.5 500 12.4 42.0 374.0
 Neoprene Spiral Cable 3 x 2.5 1000 12.4 42.0 667.5
 Neoprene Spiral Cable 3 x 2.5 1500 12.4 42.0 961.5
 Neoprene Spiral Cable 3 x 2.5 2000 12.4 42.0 1255.0
 Neoprene Spiral Cable 3 x 2.5 2500 12.4 42.0 1548.0
