 FIREROL FRL-TW-05M-ESW-OS

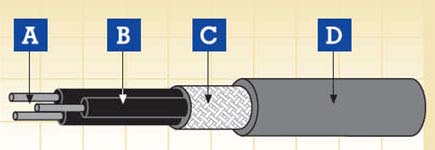

A.Conductor B.Insulation C.Screen D.Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Insulation
LSZH special compound
Overal screen
Tinned annealed copper wires
Outer sheath
LSZH special compound as defined in EN 50264-1 (S2. EM 101 - EM 104)
Electrical & Mechanical Properties
| Nominal Voltage |
300/500 V |
| Maximum Conductor Temperature |
+90/+105 deg (fixed installation) |
| Minimum Permissible Ambient Temperature |
-25/-40 deg (fixed installation) |
| Bending Radius |
10 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Low Toxicity |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-TW-05M-ESW-OS 300/500 V
NUMBER OF CORES AND NOMINAL CROSS SECTION |
MINIMUM THICKNESS OF SHEATH AT ANY POINT |
OVERALL DIAMETER |
WEIGHT |
(mm2) |
(mm) |
min. (mm) |
max. (mm) |
(kg/km) |
2 x 0.5 |
1.0 |
5.5 |
6.5 |
50 |
3 x 0.5 |
1.0 |
5.7 |
6.7 |
50 |
4 x 0.5 |
1.0 |
6.1 |
7.1 |
60 |
6 x 0.5 |
1.0 |
6.9 |
7.9 |
90 |
8 x 0.5 |
1.0 |
7.5 |
8.5 |
110 |
|
|
|
|
|
2 x 0.75 |
1.0 |
5.9 |
6.9 |
60 |
3 x 0.75 |
1.0 |
6.2 |
7.2 |
70 |
4 x 0.75 |
1.0 |
6.5 |
7.5 |
80 |
6 x 0.75 |
1.0 |
7.5 |
8.5 |
110 |
8 x 0.75 |
1.0 |
8.2 |
9.2 |
130 |
|
|
|
|
|
2 x 1.0 |
1.0 |
6.2 |
7.2 |
60 |
3 x 1.0 |
1.0 |
6.5 |
7.5 |
80 |
4 x 1.0 |
1.0 |
6.9 |
7.9 |
90 |
6 x 1.0 |
1.0 |
8.0 |
9.0 |
130 |
8 x 1.0 |
1.0 |
8.6 |
9.8 |
160 |
|
|
|
|
|
2 x 1.5 |
1.0 |
7.1 |
8.1 |
90 |
3 x 1.5 |
1.0 |
7.4 |
8.4 |
110 |
4 x 1.5 |
1.0 |
8.0 |
9.0 |
130 |
6 x 1.5 |
1.0 |
9.2 |
10.4 |
170 |
8 x 1.5 |
1.0 |
10.2 |
11.4 |
220 |
|
|
|
|
|
2 x 2.5 |
1.0 |
8.3 |
9.3 |
120 |
3 x 2.5 |
1.0 |
8.6 |
9.8 |
150 |
4 x 2.5 |
1.0 |
9.4 |
10.6 |
180 |
|
