 FIREROL FRL-HT-6SURI

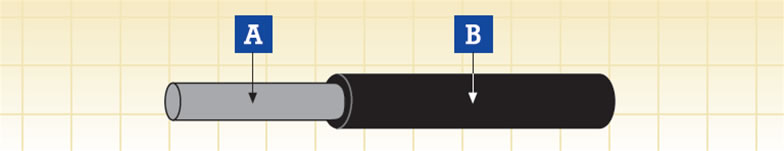

A. Conductor B. Insulation
Construction
Conductor
extra flexible tinned annealed copper wires(red copper only for 150° C core temperature)class 6 according to HD 383
Insulation
silicon rubber according to EN 50382-1 (EI 112)
Electrical & Mechanical Properties
| Nominal Voltage |
3.6/6 kV |
| Maximum Conductor Temperature |
+120/+150 deg (fixed installation)
|
| Minimum Permissible Ambient Temperature |
-25/-40 deg (fixed installation) |
| Bending Radius |
3 x Overall Diameter (D<12mm); |
| |
4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Low Toxicity |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-HT-6SURI 3.6/6 kV
NOMINAL CROSS-SECTIONAL AREA
(a) |
CONDUCTOR DIAMETER (a) |
MIN. MEAN THICKNESS OF INSULATION |
OVERALL DIAMETER |
WEIGHT |
RESISTANCE OF CONDUCTOR AT 20°C |
MIN. INSULATION RESISTANCE |
min |
max |
TINNED CONDUCTOR |
PLAIN CONDUCTOR |
AT +20℃
MIN. |
AT +150℃MIN. |
mm2 |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
MΩ·km |
MΩ·km |
50 |
9.2 |
3.0 |
15.2 |
17.8 |
560 |
0.393 |
0.386 |
340 |
0.70 |
70 |
11.0 |
3.0 |
16.9 |
19.8 |
770 |
0.277 |
0.272 |
300 |
0.60 |
95 |
12.5 |
3.0 |
18.3 |
21.4 |
970 |
0.210 |
0.206 |
270 |
0.55 |
120 |
14.2 |
3.1 |
20.1 |
23.5 |
1200 |
0.164 |
0.161 |
250 |
0.50 |
150 |
15.8 |
3.1 |
21.6 |
25.3 |
1480 |
0.132 |
0.129 |
220 |
0.45 |
185 |
17.5 |
3.2 |
23.4 |
27.4 |
1800 |
0.108 |
0.106 |
210 |
0.40 |
(a)= For information,indicative only
|
