Application

The cables are designed for high speed data transmissions, and are suitable for installations in cable trays or on hooks.

Standards

● RATP CAT6-K20 (for K20 cable)
● FRANCE TELECOM S31-10/20 & NF C 93.531-6/7 (for L120 cable)

Construction

Conductors
Class 1 AWG23 solid copper conductor (for K20 cable); 0.6mm annealed copper conductor (for L120 cable).

Insulation
Solid polyethylene (for K20 cable); Foam skin (cellular PE + solid PE) (for L120 cable).

Cabling Element
Two conductors are twisted together to form a pair (for K20 cable); Four conductors are twisted together to form a quad (for L120 cable).

Core Wrapping (for L120 cable)
Non-hygroscopic plastic tape with overlapping.

Individual Screen (for K20 cable)
Alu/polyester shield on each pair.

Overall Screen
Alu/polyester shield.

Drain Wire
Tinned copper drain wire, 0.5mm nominal diameter.

Inner Sheath (for K20 cable)
LSZH.

Armour (for K20 cable)
Galvanized steel braid armour.

Outer Sheath
LSZH.

Optional

Armoured L120 Cables: Tinned copper braid armoured cables can be offered upon request.

Electrical Characteristics at 20℃

Nominal Conductor Diameter	mm	0.56 (K20)	0.6 (L120)
AWG		23	23
Maximum Conductor Resistance	Ω/km	146.4	133.2
Minimum Insulation Resistance @500 V DC	MΩ/km	500	5000
Characteristics Impedance @100MHz	Ω	100	120+15
Maximum Capacitance Unbalance
Real/earth	pF/km	1600	300
Maximum Average Attenuation
@1MHz	dB/100m	2.0	2.0
@4MHz	dB/100m	3.8	3.8
@10MHz	dB/100m	6.0	6.0
@16MHz	dB/100m	7.6	7.6
@25MHz	dB/100m	9.5	9.5
@31.25MHz	dB/100m	10.7	10.7
@62.5MHz	dB/100m	15.4	15.4
@100MHz	dB/100m	19.8	19.8
@250MHz	dB/100m	32.9	32.9
Minimum NEXT Pair to Pair
@1MHz	dB	77.3	77.3
@4MHz	dB	68.3	68.3
@10MHz	dB	62.3	62.3
@16MHz	dB	59.2	59.2
@25MHz	dB	56.3	56.3
@31.25MHz	dB	54.9	54.9
@62.5MHz	dB	50.4	50.4
@100MHz	dB	47.3	47.3
@250MHz	dB	41.3	41.3
Minimum ELFEXT Pair to Pair
@1MHz	dB	68.8	68.8
@4MHz	dB	56.8	56.8
@10MHz	dB	48.8	48.8
@16MHz	dB	44.7	44.7
@25MHz	dB	40.8	40.8
@31.25MHz	dB	38.9	38.9
@62.5MHz	dB	32.8	32.8
@100MHz	dB	28.8	28.8
@250MHz	dB	20.8	20.8

Mechanical and Thermal Properties

Minimum Bending Radius: 12×OD (static); 24×OD (dynamic)
Temperature Range:-40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

Dimensions And Weight

K20 cables

Cable Code	No. of pairs	Nominal Sheath Thickness mm		Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Outer
0.56mm conductor, 1.45mm Insulated Wire
RD/K20-F/FTPCat6-2Y(St)H(SWB)H-PIMF-4P0.56	4	1.0	1.0	11.7	156

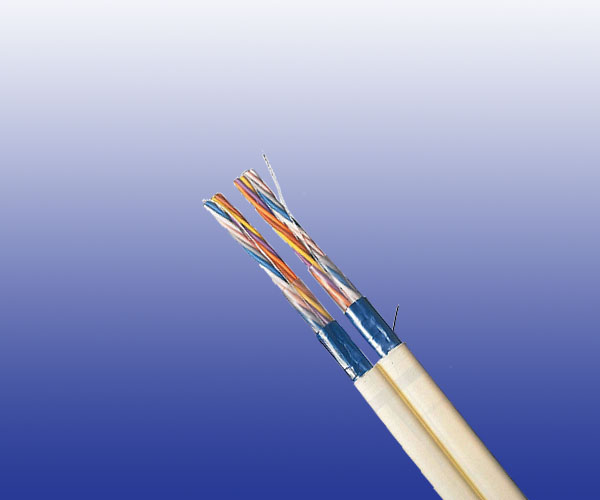

L120 cables

Cable Code	No. of pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
0.6mm conductor, 1.34mm Insulated Wire
RD/L120-F/FTPCat6-02YHH-4P0.6	4(2Q)	1.8	8.5 x 6*	60
RD/L120-F/FTPCat6-02YHH-8P0.6	8(2 x 4p)	1.8	18 x 6**	120
RD/L120-F/FTPCat6-02YHH-12P0.6	12(3 x 4p)	1.8	16	235
RD/L120-F/FTPCat6-02YHH-32P0.6	32(4 x 4Q)	1.8	19	360
RD/L120-F/FTPCat6-02YHH-64P0.6	64(8 x 4Q)	1.8	30	675
RD/L120-F/FTPCat6-02YHH-128P0.6	128(4SU x 4Q)	1.8	40	1250
