Application

The cables are designed for fixed power or lighting installations in rail transport.

Standards

● NF F 55-625
● UNE 21123

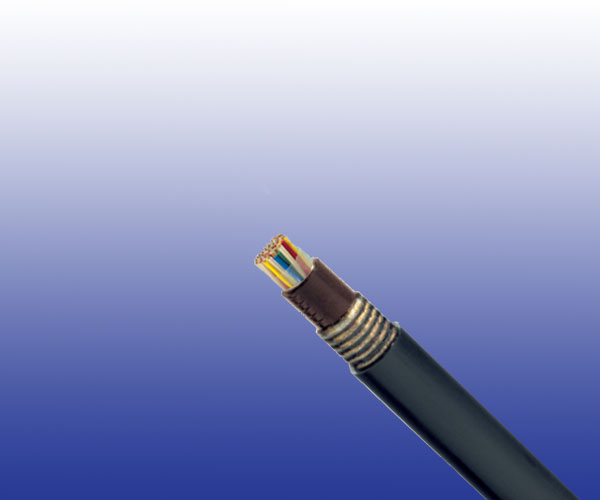

Construction

Conductors
Stranded bare copper conductor, 1.5mm² to IEC 60228 class 2.

Insulation
XLPE.

Filler & Inner Covering
LSZH.

Armour
Galvanized steel tapes.

Outer Sheath
LSZH, antitermite, coloured black.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section	mm²	1.5
Maximum DC Conductor Resistance	Ω/km	12.2
Minimum Insulation resistance @500VDC	MΩ.km	1500
Voltage Rating	KV	0.6/1（0.45/0.75 optional）

Mechanical and Thermal Properties

Minimum Bending Radius: 10×OD
Temperature Range: -20℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

Core Identification

Colours coding: Black, Light blue, Brown, Green/Yellow, Black

Dimensions And Weight

Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	No. & Nominal Diameter of Strands No/mm	Minimum Overall Diameter mm	Maximum Overall Diameter mm	Nominal Weight kg/km
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-2G1.5	2 x 1.5	7/0.53	8.0	12.0	100
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-4G1.5	4 x 1.5	7/0.53	12.5	14.5	300
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-12G1.5	12 x 1.5	7/0.53	18.0	20.0	590
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-21G1.5	21 x 1.5	7/0.53	22.0	24.0	830
