FRA 155/S Multicore

Applications :

  • Multicore cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc. Used for fixed and flexible application in dry, humid and wet rooms.

Standards :

  • IEC 60332-1, EN 50265-2-1 (flame retardant)
  • EN 50266-2 (non-flame propagating)

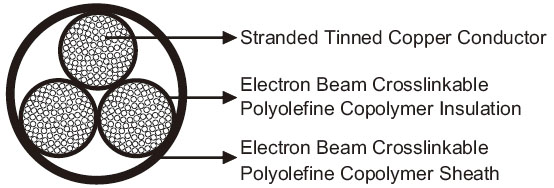

Construction :

  • Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
  • Insulation : Electron beam crosslinkable polyolefine copolymer.
  • Sheath : Electron beam crosslinkable polyolefi ne copolymer.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 0.25 0.50 0.75 1.0 1.5 2.5
    Maximum Conductor Resistance Ω/km 85.9 40.1 26.7 20.0 13.7 8.21
    Voltage Rating V 450/750V (≤0.5mm²); 600/1000V (>0.5mm²)

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
  • Temperature Range : -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing).
  • Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Number and Nominal Diameter of Strands
No./mm
Nominal Insulation Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
4×0.25 19/0.13 0.5 5.4 33
2×0.5 16/0.20 0.5 5.2 30
3×0.5 16/0.20 0.5 5.6 40
8×0.5 16/0.20 0.5 8.8 102
16×0.5 16/0.20 0.5 10.7 166
3×0.75 24/0.20 0.6 6.7 59
4×0.75 24/0.20 0.6 7.5 80
2×1 30/0.20 0.6 7.0 61
3×1 30/0.20 0.6 7.6 77
2×1.5 30/0.25 0.6 7.5 66
3×1.5 30/0.25 0.6 7.9 92
4×1.5 30/0.25 0.6 8.8 117
5×1.5 30/0.25 0.6 10.1 150
3×2.5 50/0.25 0.7 9.9 145
4×2.5 50/0.25 0.7 11.0 186
5×2.5 50/0.25 0.7 12.0 223
