4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core

Applications :

  • Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core

4GKW-AXplus-DW 1.8/3KV Dual Wall Single Core

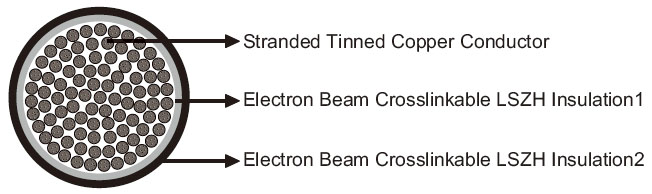

Construction :

  • Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
  • Insulation1 : Electron beam crosslinkable LSZH compound.
  • Insulation2 : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 1.0 1.5 2.5 4.0 6.0 10 16 25 35 50
    Maximum Conductor Resistance Ω/km 20.0 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
    Voltage Rating KV 1.8/3.0
  • Nominal Conductor Cross Section mm² 70 95 120 150 185 240 300 400
    Maximum Conductor Resistance Ω/km 0.277 0.21 0.164 0.132 0.108 0.0817 0.0654 0.0495
    Voltage Rating KV 1.8/3.0

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
  • Temperature Range : -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing).
  • Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Number and Nominal Diameter of Strands
No./mm
Nominal Insulation Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
1×1.0 32/0.20 0.7 2.8 17
1×1.5 30/0.25 0.8 3.2 23
1×2.0 32/0.20 0.9 3.55 28
1×2.5 50/0.25 0.9 3.70 34
1×4.0 56/0.30 1.0 4.45 53
1×6.0 84/0.30 1.1 5.05 74
1×10 80/0.40 1.2 6.35 118
1×16 126/0.40 1.5 8.3 180
1×25 196/0.40 1.8 10.2 274
1×35 276/0.40 2.0 11.4 379
1×50 396/0.40 2.2 13.6 550
1×70 360/0.50 2.1 15.6 730
1×95 475/0.50 2.3 17.3 940
1×120 608/0.50 2.4 19.6 1180
1×150 756/0.50 2.6 21.9 1510
1×185 925/0.50 2.8 23.8 1802
1×240 1221/0.50 2.9 26.8 2290
1×300 1525/0.50 3.0 29.7 2928
1×400 2013/0.50 3.4 35.8 4040
