Railway Cables

3GKW-RW 0.6/1KV Thin Wall Single Core

Applications :

  • Single core power and control cable designed for protected,fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

3GKW-RW 0.6/1KV Thin Wall Single Core

3GKW-RW 0.6/1KV Thin Wall Single Core

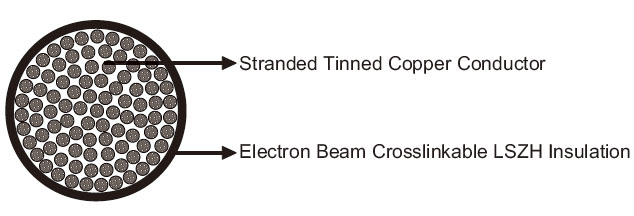

Construction :

  • Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
  • Insulation : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 0.5 0.6 0.75 1 1.2 1.5 2.0 2.5 3 4.0
    AWG     20   18 16   14   12
    Maximum Conductor Resistance Ω/km 40.1 31.1 26.7 20.0 15.5 13.7 10.5 8.21 6.56 5.09
    Voltage Rating KV 0.6/1

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
  • Temperature Range : -40℃ ~+120℃ (Static); -35℃ ~+90℃ (Flexing).
  • Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Number and Nominal Diameter of Strands
No./mm
Nominal Insulation Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
1×0.5 16/0.20 0.3 1.40 6
1×0.6 19/0.20 0.3 1.50 7
1×0.75 24/0.20 0.3 1.60 8.3
1×1.0 32/0.20 0.3 1.73 11
1×1.2 19/0.28 0.3 2.00 13
1×1.5 30/0.25 0.3 2.14 16
1×2.0 37/0.25 0.4 2.40 19
1×2.5 50/0.25 0.4 2.70 26
1×4 56/0.30 0.4 3.35 40
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
IEC 60754-1/NF C20-454
EN 50267-2-1
IEC 61034/NFC20-902
EN 50268/NF C32-073
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
