3GKW-DW/S 0.6/1KV Dual Wall Multicore

Applications :

  • Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

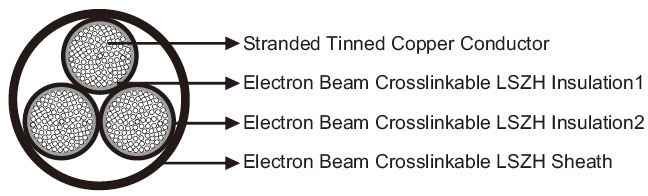

Construction :

  • Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
  • Insulation1 : Electron beam crosslinkable LSZH compound.
  • Insulation2 : Electron beam crosslinkable LSZH compound.
  • Sheath : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 0.5 0.75 1 1.5 2.5
    Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21
    Voltage Rating KV 0.6/1

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
  • Temperature Range : -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing).
  • Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 Number and Nominal Diameter of Strands
No./mm		 Nominal Insulation Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal Weight
kg/km
2×0.5 16/0.20 0.2 4.1 24
3×0.5 16/0.20 0.2 4.6 36
5×0.5 16/0.20 0.2 5.0 43
9×0.5 16/0.20 0.2 6.6 64
12×0.5 16/0.20 0.2 6.9 89
16×0.5 16/0.20 0.2 7.8 115
25×0.5 16/0.20 0.2 9.5 170
30×0.5 16/0.20 0.2 10.0 204
2×2×0.5 16/0.20 0.2 5.8 50
2×0.75 24/0.20 0.2 4.4 32
4×0.75 24/0.20 0.2 5.0 49
9×0.75 24/0.20 0.2 7.7 106
14×0.75 24/0.20 0.2 8.4 140
27×0.75 24/0.20 0.2 11.1 268
36×0.75 24/0.20 0.2 12.8 360
3×1.0 32/0.20 0.2 5.0 45
6×1.0 32/0.20 0.2 6.6 88
14×1.0 32/0.20 0.2 9.1 174
20×1.0 32/0.20 0.2 11.2 255
50×1.0 32/0.20 0.2 16.6 620
2×1.5 30/0.25 0.3 5.4 55
5×1.5 30/0.25 0.3 7.1 110
7×1.5 30/0.25 0.3 8.2 150
10×1.5 30/0.25 0.3 9.9 170
18×1.5 30/0.25 0.3 12.4 350
30×1.5 30/0.25 0.3 15.6 560
50×1.5 30/0.25 0.3 20.0 868
3×2.5 50/0.25 0.3 7.0 105
6×2.5 50/0.25 0.3 9.4 200
12×2.5 50/0.25 0.3 12.6 360
18×2.5 50/0.25 0.3 15.3 545
24×2.5 50/0.25 0.3 17.8 695
30×2.5 50/0.25 0.3 19.1 870
36×2.5 50/0.25 0.3 21.0 1050
