    MIL-W-81044/12

    Airframe Wire

    Application and Description

    MIL-W-81044 wire may be used for airframe, avionics, military vehicle, shipboard, missile and other electronic applications, Additionally, the dual layer, lightweight, high temperature wire offers outstanding performance that makes it suitable for many functions where high density cabling and harnessing are required, these wires have excellent resistance to cut-through, abrasion, cold flow, shrink back, notch propagation and common chemicals.

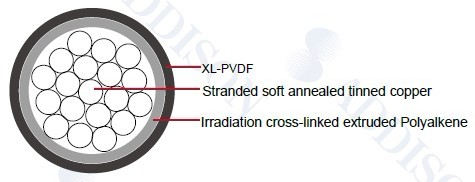

    Construction Details

    The jacket is XL-PVDF

    Construction

    • Conductor: Stranded soft annealed tinned copper conductor
    • Insulation: Irradiation cross-linked extruded Polyalkene insulation
    • jacket: Extruded XL Polyvinylidene Fluoride (XL-PVDF)
    • Insulating Material Thickness: 15 mil ( 0.4 mm) to 21 mil ( 0.5mm)

    Characteristics

    Temperature Rating 150°C
    Voltage Rating 600 volts
    MIL-W-81044/12
    SAE AS81044
    10 basic colors

    Dimensions and Weight

    AWG Size Conductor Stranding Min O.D. Max O.D. Approx LBS/ MFT
        In mm In mm
    30 7/38 0.025 0.635 0.029 0.737 0.71
    28 7/36 0.028 0.711 0.032 0.813 0.96
    26 19/38 0.032 0.813 0.036 0.914 1.40
    24 19/36 0.038 0.965 0.042 1.067 2.10
    22 19/34 0.045 1.143 0.049 1.245 3.10
    20 19/32 0.053 1.346 0.057 1.448 4.60
    18 19/30 0.063 1.600 0.067 1.702 7.00
    16 19/29 0.069 1.753 0.075 1.905 8.90
    14 29/27 0.085 2.159 0.093 2.362 13.90
    12 37/28 0.104 2.642 0.112 2.845 21.70
