    MIL-W-22759/1

    Application and Description

    These PTFE, FEP, and Glass insulated single-core MIL-W-22759/1 wires are used for MIL-Spec and Aerospace, government applications in which wire must operate in extremely harsh environments. These wires are abrasion resistant, withstanding vibration and exposure to open flame.

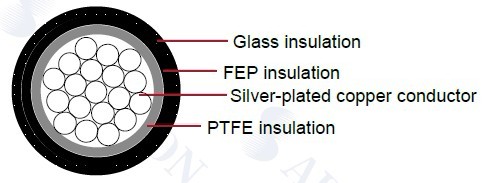

    Construction Details

    The first layer is PTFE wrapped tape. The second and third layers are PTFE coated glass braid.

    Construction

    Conductor: Silver-plated copper

    Insulation: PTFE, FEP, and Glass

    Insulating Material Thickness: 54 mil ( 1.4 mm) to 125 mil ( 3.2mm)

    Characteristics

    Temperature Rating 200°C
    Voltage Rating 600 volts SAE AS22759/1
    Color Code MIL-STD-681

    Dimensions and Weight

    AWG Size Conductor Stranding Conductor Oiam. Min Conductor Oiam. Max Min O.D. Max O.D. Approx LBS/ MFT
        In mm In mm In mm In mm
    22 19/34 0.029 0.737 0.032 0.813 0.08 2.032 0.088 2.235 7.5
    20 19/32 0.037 0.940 0.040 1.016 0.09 2.286 0.098 2.489 9.5
    18 19/30 0.046 1.168 0.050 1.270 0.100 2.540 0.110 2.794 13.0
    16 19/29 0.052 1.321 0.057 1.448 0.115 2.921 0.125 3.175 16.5
    14 19/27 0.065 1.651 0.072 1.829 0.133 3.378 0.143 3.632 23.0
    12 37/28 0.084 2.134 0.089 2.261 0.152 3.861 0.162 4.115 32.1
    10 37/16 0.406 10.312 0.112 2.845 0.174 4.420 0.188 4.775 47
    8 133/29 0.158 4.013 0.169 4.293 0.241 6.121 0.255 6.477 82
    6 133/27 0.198 5.029 0.213 5.410 0.283 7.188 0.303 7.696 122
    4 133/25 0.250 6.350 0.268 6.807 0.400 10.160 0.43 10.922 180
    2 665/30 0.320 8.128 0.340 8.636 0.405 10.287 0.435 11.049 275
    1 817/30 0.360 9.144 0.380 9.652 0.455 11.557 0.485 12.319 348
    1/0 1045/30 0.395 10.033 0.425 10.795 0.495 12.573 0.535 13.589 429
    2/0 1330/30 0.440 11.176 0.475 12.065 0.555 14.097 0.595 15.113 542
    3/0 1665/30 0.500 12.70 0.540 13.716 0.620 15.748 0.660 16.764 668
    4/0 2109/30 0.565 14.351 0.605 15.367 0.69 17.526 0.730 18.542 835
