Flame Retardant RG11 A/U CWB/SWB/SWA Armoured Coaxial Cables

Flame Retardant Coaxial Cables

APPLICATION
These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

STANDARDS
Basic design adapted to MIL-C-17

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

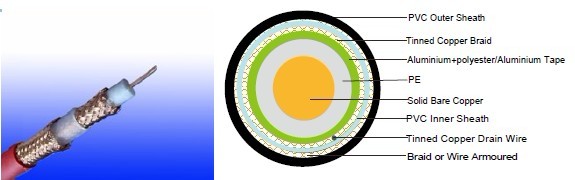

CABLE CONSTRUCTION
Conductors: 14AWG solid bare copper.
Insulation: Low density PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: Low smoke and halogen-free polyolefin, coloured black.
Armour:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +75°C
Minimum bending radius: 15 x Overall Diameter

Electrical Properties

AWG



14

Nominal Conductor Diameter

mm

1.6

Impedance

Ω

75+/-5

Nominal Attenuation@100MHz

dB/100m

4.5

Nominal Attenuation@270MHz

dB/100m

7.6

Nominal Attenuation@540MHz

dB/100m

10.8

Nominal Attenuation@750MHz

dB/100m

12.8

Nominal Attenuation@1000MHz

dB/100m

14.8

Capacitance

pF/m

53.5

Velocity of Propagation

%

83

Conductor DCR

Ω/km

8.5

Shield DCR

Ω/km

12.1

Inductance

μH/m

0.32

Time Delay

ns/m

4

CONSTRUCTION PARAMETERS

Cable Code

Nominal Inner Conductor Diameter

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Nominal
Weight



mm

mm

mm

mm

kg/km

FGD RG11 A/U CWB

1.6

2.7

1.7

15.2

349

FGD RG11 A/U SWB

1.6

2.7

1.7

15.2

344

FGD RG11 A/U SWA

1.6

2.7

1.7

16.2

468
