300/500V Braid-Screened Flexible Equipment Cables (Multipair)

LI-05SOZ1 FE180 (PH30) (CU/SR/OSCR/LSZH 300/500V Class 5)

LI-05SOZ1 FE180 (PH30) (CU/SR/OSCR/LSZH 300/500V Class 5)

APPLICATION
The cables are designed for indoor instrumentation and control cabling, electrically noisy environments and fire alarm systems in office buildings.

STANDARDS
Basic design to VDE 0812/EN 50290-2-27

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

Circuit Integrity with mechanical shock

EN 50200(PH30); CEI 20-36/4-0

Circuit Integrity with mechanical shock & water spray

EN 50200 annex E

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
300/500 V

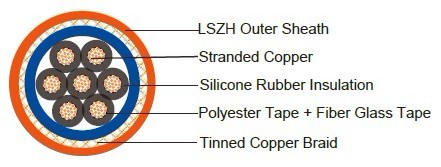

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling: The insulated cores are cabled in concentric layers with suitable non-hygroscopic fillers.
Fire Barrier: Polyester tape + fiber glass tape
Overall screen: Aluminum/polyester tape with tinned copper braid (min. 85% Coverage)
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour: Per VDE 0812
Sheath Colour: Orange (other colours on request)

TYPE CODE
LI Equipment cable with fine stranded conductor
H Halogen free ceramic polymer compound
C Copper Wire Braid
FE180 Insulation integrity (950°C 180 minutes)
PH 90 Fire Test for 90 mins at 830°C

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical PROPERTIES

Dielectric test:

2000 V r.m.s. x 5' (core/core)

Insulation resistance

≥300 MΩ x km (at 20°C);

Short circuit temperature

350°C

CONSTRUCTION PARAMETERS

Cable Code

No. of Core X Cross Section

Nominal
Insulation
Thickness

Nominal
Sheath
Thickness

Nominal
Overall
Diameter

Approx.
Weight



mm2

mm

mm

mm

kg/km

2 cores

LI-HCH FE180 (PH30)

2x0.75

0.6

0.8

6.3

55

LI-HCH FE180 (PH30)

2x1.0

0.6

0.9

6.9

62

LI-HCH FE180 (PH30)

2x1.5

0.7

0.9

7.3

79

3 cores

LI-HCH FE180 (PH30)

3x0.75

0.6

0.8

6.6

67

LI-HCH FE180 (PH30)

3x1.0

0.6

0.9

7.2

77

LI-HCH FE180 (PH30)

3x1.5

0.7

0.9

7.6

101

4 cores

LI-HCH FE180 (PH30)

4x0.75

0.6

0.9

7.2

85

LI-HCH FE180 (PH30)

4x1.0

0.6

1.0

7.7

98

LI-HCH FE180 (PH30)

4x1.5

0.7

1.0

8.2

112

5 cores

LI-HCH FE180 (PH30)

5x0.75

0.6

0.9

7.9

105

LI-HCH FE180 (PH30)

5x1.0

0.6

1.0

7.9

117

LI-HCH FE180 (PH30)

5x1.5

0.7

1.0

9.0

127

6 cores

LI-HCH FE180 (PH30)

6x0.75

0.6

0.9

8.6

121

LI-HCH FE180 (PH30)

6x1.0

0.6

1.0

9.1

138

LI-HCH FE180 (PH30)

6x1.5

0.7

1.0

10.0

161

7 cores

LI-HCH FE180 (PH30)

7x0.75

0.6

0.9

8.6

131

LI-HCH FE180 (PH30)

7x1.0

0.6

1.0

9.1

152

LI-HCH FE180 (PH30)

7x1.5

0.7

1.1

10.0

193

Note : Other conductor sizes & core configurations are available upon request.
