Cables for Oil Industry

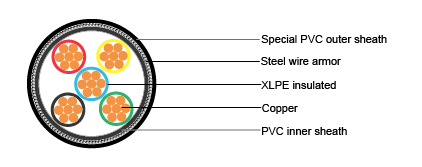

   600V/1000V XLPE Insulated Steel Wire Armored Cable to IEC 60502-1

These cables are used for electricity supply in low voltage installation system. They are suitable for
installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local
energy distributions, industrial plants, where require chemical and mechanical protections.

Conductor: Solid or stranded copper
Insulation: XLPE
Core identification
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 cores: Black core printed with white numbers
Inner sheath: PVC. Color: black
Armor: Galvanized steel wires or aluminium wires for 1 core cable
Sheath: Special PVC. Color: black

Rated voltage: 600V/1000V
Fire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance

For detailed data for this cable, welcome to go to the DOWNLOAD area for document download or online viewing.
