    Two-core 600/1000V cables with stranded copper conductors

    • Two-core 600/1000V cables with stranded copper conductors
    • Two-core 600/1000V cables with stranded copper conductors

    APPLICATION

    These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

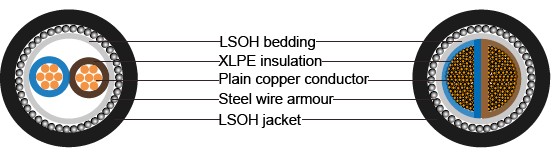

    CONSTRUCTION

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green/Yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Bedding LSOH (Low Smoke Zero Halogen)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : SWA (Steel Wire Armour)
    Outer Sheath LSOH (Low Smoke Zero Halogen)

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating 0°C to +90°C
    Bending radius 1.5mm² to 16mm² : 6 x overall diameter
    25mm² and above : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1
    Halogen free IEC 60754, EN 50267
    Smoke density IEC 61034, EN50268

    CABLE PARAMETER

    Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal BeddingThickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx. Overall Diameter Aprrox. Weight
    mm² No./mm mm mm mm mm mm kg/km
    2×1.5 7/0.53 0.6 0.8 0.9 1.4 12.1 320
    2×2.5 7/0.67 0.7 0.8 0.9 1.4 13.6 365
    2×4 7/0.85 0.7 0.8 0.9 1.4 14.7 440
    2×6 7/1.04 0.7 0.8 0.9 1.4 15.9 470
    2×10 7/1.35 0.7 0.8 0.9 1.5 18.0 800
    2×16 7/1.70 0.7 0.8 1.25 1.5 20.4 900
    2×25 7/2.14 0.9 0.8 1.25 1.6 24.1 1240
    2x25* 7/2.14 0.9 0.8 1.25 1.6 20.4 1240
    2x35 7/2.52 0.9 1 1.6 1.7 27.7 1710
    2x35* 7/2.52 0.9 1 1.6 1.7 23.3 1710
    2×50* 19/1.78 1.0 1 1.6 1.8 25.8 1800
    2×70* 19/2.14 1.1 1 1.6 1.9 29.0 2320
    2×95* 19/2.52 1.1 1.2 2.0 2.0 33.0 3150
    2×120* 37/2.03 1.2 1.2 2.0 2.1 36.1 3880
    2×150* 37/2.25 1.4 1.2 2.0 2.2 39.3 4820
    2×185* 37/2.52 1.6 1.4 2.5 2.4 44.7 5920
    2×240* 61/2.25 1.7 1.4 2.5 2.5 49.0 7300
    2×300* 61/2.52 1.8 1.6 2.5 2.6 53.5 8770
    2×400* 61/2.85 2 1.6 2.5 2.8 59.0 10905

    * D-Shaped stranded conductor (class 2)
