Four-core 600/1000 V cables with lead sheath

APPLICATION

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

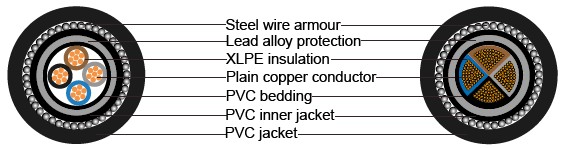

CONSTRUCTION

Conductor Stranded copper conductor, Class 2 to BS 6460, IEC 60228.
Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
Colour Code 1 Core : Brown
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores : White Cores with black numerals
Bedding PVC (Polyvinyl Chloride)
Protection LC (Lead alloy 'E') sheathed
Inner Sheath PVC (Polyvinyl Chloride)
Armour Single Core : AWA (Aluminum Wire Armour)
Multi Core : SWA (Steel Wire Armour)
Outer Sheath PVC(Polyvinyl Chloride), or anti-rodent and anti-termite PVC(optional)

TECHNICAL INFORMATION

Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 12 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

CABLE PARAMETER

Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox. Weight
mm² No./mm mm mm mm mm mm mm kg/km
4x1.5 7/0.53 0.7 1.2 0.8 1.25 1.4 19 1140
4x2.5 7/0.67 0.7 1.2 0.8 1.25 1.4 20 1270
4x4 7/0.85 0.7 1.2 0.8 1.25 1.4 21.5 1455
4x6 7/1.04 0.7 1.2 0.8 1.25 1.5 22.5 1650
4x10 7/1.35 0.7 1.2 0.8 1.6 1.5 25 2130
4x16 7/1.70 0.7 1.2 0.8 1.6 1.6 28 2640
4x25 7/2.14 0.9 1.3 1 1.6 1.7 33 3635
4x35 7/2.52 0.9 1.5 1 2 1.8 36.5 4535
4x50* 19/1.78 1.0 1.4 1 2 1.9 38 5000
4x70* 19/2.14 1.1 1.6 1.2 2 2.1 42 6455
4x95* 19/2.52 1.1 1.7 1.2 2.5 2.2 47.5 8535
4x120* 37/2.03 1.2 1.8 1.4 2.5 2.3 52 10155
4x150* 37/2.25 1.4 1.9 1.4 3.15 2.4 58.5 12735
4x185* 37/2.52 1.6 2.1 1.4 3.15 2.6 63.5 15344
4x240* 61/2.25 1.7 2.2 1.6 3.5 2.7 71.5 19382
4x300* 61/2.52 1.8 2.4 1.6 4 2.9 78 21150

* Shaped stranded conductor
