Two-core 600/1000V cables with lead sheath

APPLICATION

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

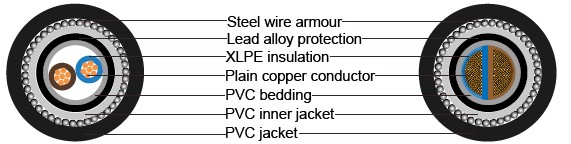

CONSTRUCTION

Conductor Stranded copper conductor, Class 2 to BS 6460, IEC 60228.
Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
Colour Code 1 Core : Brown
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores : White Cores with black numerals
Bedding PVC (Polyvinyl Chloride)
Protection LC (Lead alloy 'E') sheathed
Inner Sheath PVC (Polyvinyl Chloride)
Armour Single Core : AWA (Aluminum Wire Armour)
Multi Core : SWA (Steel Wire Armour)
Outer Sheath PVC(Polyvinyl Chloride), or anti-rodent and anti-termite PVC(optional)

TECHNICAL INFORMATION

Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 12 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

CABLE PARAMETER

Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead Sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox. Weight
mm² No./mm mm mm mm mm mm mm kg/km
2x1.5 7/0.53 0.6 1.2 0.8 0.9 1.3 16.5 780
2x2.5 7/0.67 0.7 1.2 0.8 0.9 1.4 17.2 985
2x4 7/0.85 0.7 1.2 0.8 0.9 1.4 18.4 1100
2x6 7/1.04 0.7 1.2 0.8 0.9 1.4 19.6 1240
2x10 7/1.35 0.7 1.2 0.8 0.9 1.5 20.8 1430
2x16 7/1.70 0.7 1.2 0.8 1.25 1.5 21.8 1700
2x25 7/2.14 0.9 1.2 0.8 1.25 1.6 25.5 2060
2x35* 7/2.52 0.9 1.3 1 1.6 1.7 29.4 2670
2x50* 19/1.78 1.0 1.2 1 1.6 1.8 27.2 2640
2x70* 19/2.14 1.1 1.3 1 1.6 1.9 30.5 3400
2x95* 19/2.52 1.1 1.4 1.2 2.0 2.0 34.5 4530
2x120* 37/2.03 1.2 1.4 1.2 2.0 2.1 37.8 5170
2x150* 37/2.25 1.4 1.5 1.2 2.0 2.2 41.1 6120
2x185* 37/2.52 1.6 1.6 1.4 2.5 2.4 46.3 7710
2x240* 61/2.25 1.7 1.8 1.4 2.5 2.5 51.7 9650
2x300* 61/2.52 1.8 1.9 1.6 2.5 2.6 56.3 11510

* -shaped stranded conductor
