BS 5467 Cables
BS 5467 Armoured Power Cables, 600/1000V
Three-core 600/1000 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

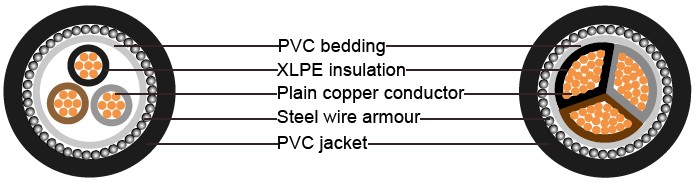

Construction
Conductor |
Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. |
Insulation Colour Code |
XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) 1 Core : Brown |
|
2 Cores: Brown or Blue |
|
3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
Bedding Armour Outer Sheath |
PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour)Multi Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride) |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Beddingthickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. OverallDiameter |
AprroxWeight |
Extruded bedding |
Taped bedding |
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
3x1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.3 |
12.6 |
- |
340 |
3x2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
14.1 |
- |
408 |
3x4 |
7/0.85 |
0.7 |
0.8 |
0.9 |
1.4 |
15.3 |
- |
498 |
3x6 |
7/1.04 |
0.7 |
0.8 |
0.9 |
1.4 |
16.6 |
- |
600 |
3x10 |
7/1.35 |
0.7 |
0.8 |
1.25 |
1.5 |
19.5 |
- |
915 |
3x16 |
7/1.70 |
0.7 |
0.8 |
1.25 |
1.6 |
21.6 |
21.6 |
1130 |
3x25 |
7/2.14 |
0.9 |
1 |
1.6 |
1.7 |
26.7 |
26.3 |
1710 |
3x25* |
7/2.14 |
0.9 |
1 |
1.6 |
1.7 |
23.6 |
23.2 |
1710 |
3x35 |
7/2.52 |
0.9 |
1 |
1.6 |
1.8 |
29.4 |
29.0 |
2100 |
3x35* |
7/2.52 |
0.9 |
1 |
1.6 |
1.8 |
25.7 |
25.3 |
2100 |
3x50* |
19/1.78 |
1.0 |
1 |
1.6 |
1.8 |
28.5 |
28.1 |
2450 |
3x70* |
19/2.14 |
1.1 |
1 |
1.6 |
1.9 |
32.2 |
31.8 |
3120 |
3x95* |
19/2.52 |
1.1 |
1.2 |
2.0 |
2.1 |
37.0 |
36.2 |
4310 |
3x120* |
37/2.03 |
1.2 |
1.2 |
2.0 |
2.2 |
40.4 |
39.6 |
5160 |
3x150* |
37/2.25 |
1.4 |
1.4 |
2.5 |
2.3 |
45.5 |
44.3 |
7160 |
3x185* |
37/2.52 |
1.6 |
1.4 |
2.5 |
2.4 |
49.8 |
48.6 |
8600 |
3x240* |
61/2.25 |
1.7 |
1.4 |
2.5 |
2.6 |
55.1 |
53.9 |
10755 |
3x300* |
61/2.52 |
1.8 |
1.6 |
2.5 |
2.7 |
60.2 |
58.6 |
13080 |
3x400* |
61/2.85 |
2 |
1.6 |
2.5 |
2.9 |
66.6 |
65.0 |
15810 |
|
