BS 5467 Cables
BS 5467 Armoured Power Cables, 1900/3300V
Three-core 1900/3300 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

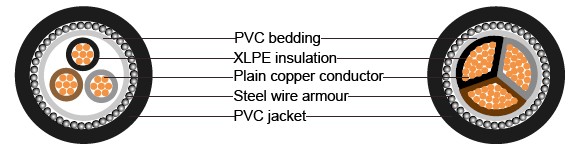

Construction
Conductor |
Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. |
Insulation Colour Code |
XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
1 Core : Brown |
|
3 Cores: Brown, Black, Grey |
Bedding Armour Outer Sheath |
PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour) Multi Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride) |
Technical Information
Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal bedding
thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx.Overall Diameter |
AprroxWeight |
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
3x16 |
7/1.70 |
2 |
1 |
1.6 |
1.8 |
29.3 |
1600 |
3x25 |
7/2.14 |
2 |
1 |
1.6 |
1.8 |
32.2 |
2060 |
3x35 |
7/2.52 |
2 |
1 |
1.6 |
1.9 |
34.8 |
2400 |
3x35* |
7/2.52 |
2 |
1 |
1.6 |
1.9 |
31.1 |
2400 |
3x50* |
19/1.78 |
2 |
1.2 |
2 |
2 |
34.7 |
3200 |
3x70* |
19/2.14 |
2 |
1.2 |
2 |
2.1 |
38 |
3800 |
3x95* |
19/2.52 |
2 |
1.2 |
2 |
2.2 |
41.4 |
4730 |
3x120* |
37/2.03 |
2 |
1.4 |
2.5 |
2.3 |
45.7 |
6070 |
3x150* |
37/2.25 |
2 |
1.4 |
2.5 |
2.4 |
48.5 |
7010 |
3x185* |
37/2.52 |
2 |
1.4 |
2.5 |
2.5 |
51.9 |
8270 |
3x240* |
61/2.25 |
2 |
1.6 |
2.5 |
2.6 |
56.9 |
10310 |
3x300* |
61/2.52 |
2 |
1.6 |
2.5 |
2.7 |
61.2 |
12300 |
3x400* |
61/2.85 |
2 |
1.6 |
2.5 |
2.9 |
66.6 |
14500 |
|
