Single-core 600/1000V cables with circular stranded copper conductor

APPLICATION

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

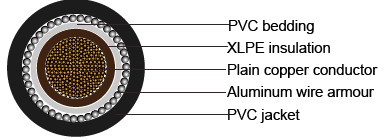

CONSTRUCTION

Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
Colour Code 1 Core : Brown
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores : White Cores with black numbers
Bedding Single core extruded layer of polymeric material
Multicore a) extruded layer of polymeric materia
b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above
Armour Single Core : AWA (Aluminum Wire Armour)
Multi Core : SWA (Steel Wire Armour)
Outer Sheath Extruded PVC, type 9 specified in BS7655

TECHNICAL INFORMATION

Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm² : 6 x overall diameter
25mm² and above : 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

CABLE PARAMETER

Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Alum Wire dia. Nominal Sheath thickness Approx. Overall Diameter Aprrox. Weight
mm² No./mm mm mm mm mm mm kg/km
1x50 19/1.78 1.0 0.8 0.9 1.5 17.5 800
1x70 19/2.14 1.1 0.8 1.25 1.5 20.2 990
1x95 19/2.52 1.1 0.8 1.25 1.6 22.3 1280
1x120 37/2.03 1.2 0.8 1.25 1.6 24.2 1550
1x150 37/2.25 1.4 1 1.6 1.7 27.4 1900
1x185 37/2.52 1.6 1 1.6 1.8 30.0 2320
1x240 61/2.25 1.7 1 1.6 1.8 32.8 2930
1x300 61/2.52 1.8 1 1.6 1.9 35.6 3580
1x400 61/2.85 2.0 1.2 2.0 2.0 40.5 4600
1x500 61/3.20 2.2 1.2 2.0 2.1 44.2 5680
1x630 127/2.52 2.4 1.2 2.0 2.2 48.8 7160
1x800 127/2.85 2.6 1.4 2.5 2.4 55.4 9315
1x1000 127/3.20 2.8 1.4 2.5 2.5 60.6 11490
