 Rolling Stock Kabel
EN 50264 Standard Wall Power & Control Cable
FIREROL FRL-SW-3S/FRL-SW-6S
1.8/3 or 3.6/6 kV - sheathed single core

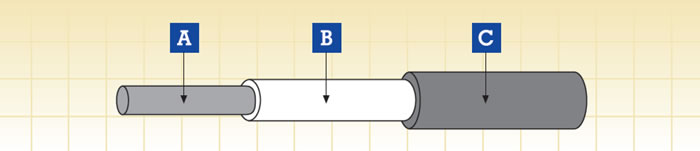

A.Conductor B.Insulation C.Sheath
Anwendung
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Bau
Dirigent
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Isolierung
LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)
Mantel
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)
Electrical & Mechanical Properties
| Nominal Voltage |
1.8/3 kV or 3.6/6 kV |
| Maximum Conductor Temperature |
+90 deg (fixed installation) |
| Minimum Permissible Ambient Temperature |
-25/-40 deg (fixed installation) |
| Bending Radius |
3 x Overall Diameter (D<12mm); |
| |
4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-SW-3S 1.8/3 kV
| Nominalen Querschnitt |
Dirigent
Durch
messer (a) |
MIN. Bedeuten, Dicke der Dämmung |
MIN. Bedeuten Dicke von Mantel |
Außendur
chmesser |
Gew
icht |
Leiter
wider
stand AT |
Isolations
wider
stand AT AT |
Isolations
wider
stand AT AT |
| |
min |
max |
|
max |
min |
min |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
MΩ·km |
MΩ·km |
1.5 |
1.5 |
1.3 |
1.4 |
6.7 |
7.8 |
80 |
13.7 |
960 |
9.6 |
2.5 |
1.95 |
1.3 |
1.4 |
7.1 |
8.3 |
100 |
8.21 |
850 |
8.5 |
4.0 |
2.5 |
1.3 |
1.4 |
7.6 |
8.9 |
120 |
5.09 |
750 |
7.5 |
6.0 |
3.0 |
1.3 |
1.4 |
8.1 |
9.5 |
140 |
3.39 |
670 |
6.7 |
10 |
3.9 |
2.2 |
1.4 |
10.6 |
12.4 |
250 |
1.95 |
550 |
5.5 |
16 |
5.0 |
2.2 |
1.4 |
11.7 |
13.6 |
310 |
1.24 |
450 |
4.5 |
25 |
6.4 |
2.2 |
1.4 |
13.0 |
15.2 |
410 |
0.795 |
390 |
3.9 |
35 |
7.7 |
2.2 |
1.4 |
14.2 |
16.6 |
520 |
0.565 |
350 |
3.5 |
50 |
9.2 |
2.2 |
1.4 |
15.6 |
18.3 |
660 |
0.393 |
300 |
3.0 |
70 |
11.0 |
2.2 |
1.5 |
17.5 |
20.5 |
880 |
0.277 |
260 |
2.6 |
95 |
12.5 |
2.4 |
1.6 |
19.6 |
22.3 |
1130 |
0.210 |
250 |
2.5 |
120 |
14.2 |
2.4 |
1.6 |
21.1 |
24.6 |
1370 |
0.164 |
220 |
2.2 |
150 |
15.8 |
2.4 |
1.7 |
22.7 |
26.6 |
1690 |
0.132 |
210 |
2.1 |
185 |
17.5 |
2.4 |
1.7 |
24.0 |
28.1 |
2000 |
0.108 |
200 |
2.0 |
240 |
20.1 |
2.4 |
1.8 |
27.0 |
31.6 |
2620 |
0.0817 |
180 |
1.8 |
300 |
22.5 |
2.4 |
1.9 |
29.4 |
34.4 |
3140 |
0.0654 |
170 |
1.7 |
400 |
25.8 |
2.6 |
2.0 |
32.7 |
38.3 |
4140 |
0.0495 |
150 |
1.5 |
FRL-SW-6S 3/6 kV
Nominalen Querschnitt |
Dirigent
Durch
messer (a) |
MIN. Bedeuten, Dicke der Dämmung |
MIN. Bedeuten Dicke von Mantel |
Außendurchmesser |
Gew
icht |
Leiter
wider
stand
20°C |
INSULATION RESISTANCE AT 20°C |
INSULATION RESISTANCE AT 90°C |
|
min |
max |
max |
min |
min |
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
MΩ·km |
MΩ·km |
2.5 |
1.95 |
3.0 |
1.4 |
10.5 |
12.3 |
170 |
8.21 |
1300 |
13 |
4.0 |
2.5 |
3.0 |
1.4 |
11.0 |
12.9 |
190 |
5.09 |
1150 |
11.5 |
6.0 |
3.0 |
3.0 |
1.4 |
11.5 |
13.4 |
230 |
3.39 |
1050 |
10.5 |
10 |
3.9 |
3.0 |
1.4 |
12.3 |
14.4 |
300 |
1.95 |
850 |
8.5 |
16 |
5.0 |
3.0 |
1.4 |
13.3 |
15.6 |
360 |
1.24 |
710 |
7.1 |
25 |
6.4 |
3.0 |
1.4 |
14.7 |
17.2 |
450 |
0.795 |
630 |
6.3 |
35 |
7.7 |
3.0 |
1.4 |
15.9 |
18.6 |
560 |
0.565 |
550 |
5.5 |
50 |
9.2 |
3.0 |
1.5 |
17.5 |
20.5 |
720 |
0.393 |
500 |
5.0 |
70 |
11.0 |
3.0 |
1.5 |
19.2 |
22.4 |
930 |
0.277 |
430 |
4.3 |
95 |
12.5 |
3.0 |
1.6 |
20.8 |
24.3 |
1160 |
0.210 |
400 |
4.0 |
120 |
14.2 |
3.1 |
1.7 |
22.7 |
26.6 |
1430 |
0.164 |
360 |
3.6 |
150 |
15.8 |
3.1 |
1.7 |
24.2 |
28.4 |
1740 |
0.132 |
340 |
3.4 |
185 |
17.5 |
3.2 |
1.8 |
26.2 |
30.7 |
2080 |
0.108 |
330 |
3.3 |
240 |
20.1 |
3.4 |
1.9 |
29.2 |
34.2 |
2730 |
0.0817 |
300 |
3.0 |
300 |
22.5 |
3.4 |
1.9 |
31.5 |
36.9 |
3230 |
0.0654 |
250 |
2.5 |
400 |
25.8 |
3.4 |
2.0 |
34.8 |
40.7 |
4210 |
0.0495 |
230 |
2.3 |
(a)= for information, indicative only
|
